95 kPa Pressure Bags | 95kPa Specimen bag | Air Sea Containers
1. Product Description

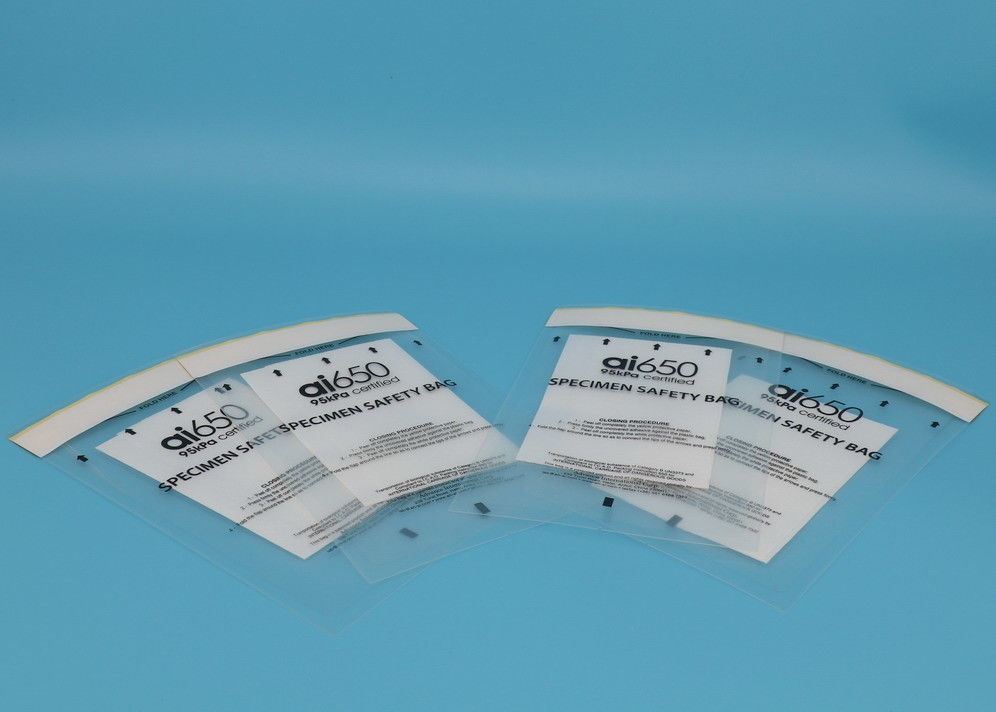

The ai650® 95kPa Biohazard Specimen Transportation Bag are qualified to withstand the requirement of
ICAO Packaging Instruction 650 and the CFR 49, Parts 100 to 195 and thus ensure the safety during the
Transportation of Dangerous Goods or Biohazard Materials by Air.
Category B Ambient - 95kPa bags
The ambient transport system for elongated microbiology swab transport includes: 95Kpa bags, absorbent
sheet, list of contents card, biohazard symbol label, Biological Substance Category B label, and transport box.
Each swab canister holds up to six swabs.
Part No. Description Packaging
The bags can be produced in our brand name or ai650 ® or in OEM brands or customized labels of customers.
2. Available sizes
Size (I.D.: mm) | Size (I.D.: inch) | Qty per carton | |
Small | 150mm x 240mm | 6" x 9.5" | 400 bags |
Medium | 250mm x 300mm | 9.75" x 11.75" | 200 bags |
Large | 300mm x 400mm | 11.75" x 15.75" | 200 bags |
X-Large | 350mm x 450mm | 13.75" x 17.75" | 100 bags |
1. Our 95 kPa bags satisfy supplementary packaging requirements in the IATA DG Regulations (5.0.2.9.4).
These bags are designed to be used with inner packaging containing liquids that, in themselves, do no
comply with 95 kPa pressure requirements. When a 95 kPa bag is used in conjunction with each inner
packaging containing liquid, the assembled UN package is eligible to be transported by air (IATA DGR
packaging instructions must also be followed to ensure compliance). Our pressure bags also double as
a barrier between intermediate packaging (ie. vermiculite or other absorbent) and inner containers in
4GV UN Boxes. Browse our various sizes belo When you need a shipping option that can withstand
temperature and pressure changes without leaking, then our 95kPa Pressure Bags may be the best
option. This bag is designed to withstand, without leakage, an internal pressure which produces a
pressure differential of not less than 95kPa. The patented VonSeal® liquid tight bag has passed the
tests as outlined in 173.196(f) of the DOT’s Title 49 CFR and as outlined in Packing Instructions 602
and 650 of the 2001-02 ICAO Technical Instructions for the Safe Transport of Dangerous Goods by Air.
2. These pressure bags are made with a custom film structure that features a strong adhesive closure
and continuous seal, which makes it ideal for critical liquid and substance containment. The permanent
adhesive closure withstands a temperature range of -40⁰C up to +55⁰C (-40⁰F up to +130⁰F).
3. These UN-certified, Variation Two shippers are suitable for shipping hazardous liquids or solids in
Packing Groups I, II and III by any mode of transportation.They can accommodate your own glass or
plastic bottles which must pass hydrostatic pressure tests to meet ISTA Procedure 1A when shipping
by air. These kits include everything you need to protect your containers’ internal contents, such as
absorbent pouches, fiberboard insert, fiberboard pads, ties and a 4GV corrugated outer box. Available
in two sizes, you can ship either four 8-oz. or four 1L containers. Save yourself time and avoid packaging
errors and compliance issues when shipping four inner containers of hazardous materials by using one of
these all-inclusive 4GV packaging kits.
4. It is suitable for transport packaging of pipes, bottles, containers or some samples with potential
infectious sources to the laboratory. This series of products received 95KPa pressure and leakage test in
the temperature range of -40 ° C to +50 ° C;
6. How to Close The Shipping Bag Properly
Specimen shipping bags in this carton are designed to perform at high internal pressure, should an airliner
lose its cabin pressure. So, in order for the bag to be effective and perform to its design capabilities, the
bag must be closed properly after insertion of the specimen
