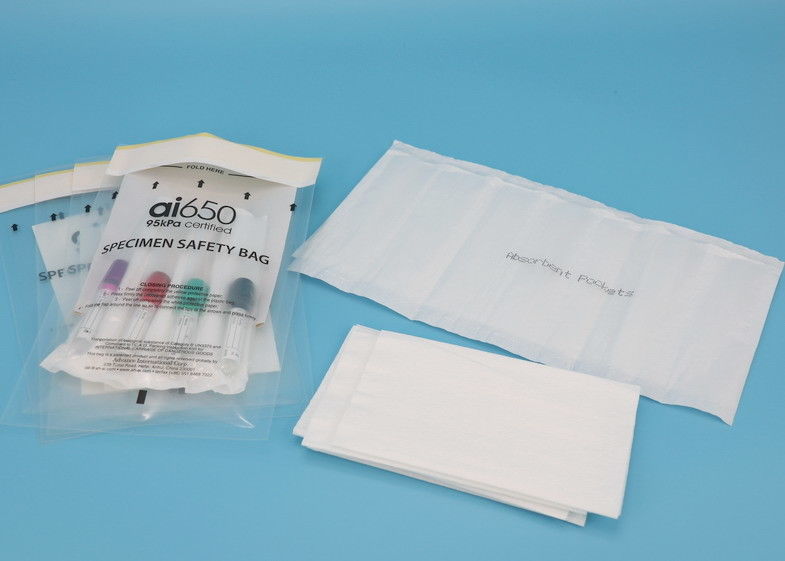

AI650 95kPa Compliant Transport Bags size Medium 9.75" x 11.75" transportation of dangerous goods
1. General Description
Our 95 kPa bags satisfy supplementary packaging requirements in the IATA DG Regulations (5.0.2.9.4).
These bags are designed to be used with inner packaging containing liquids that, in themselves, do no
comply with 95 kPa pressure requirements. When a 95 kPa bag is used in conjunction with each inner
packaging containing liquid, the assembled UN package is eligible to be transported by air (IATA DGR
packaging instructions must also be followed to ensure compliance). Our pressure bags also double as a
barrier between intermediate packaging (ie. vermiculite or other absorbent) and inner containers in 4GV UN
Boxes. Browse our various sizes belo When you need a shipping option that can withstand temperature and
pressure changes without leaking, then our 95kPa Pressure Bags may be the best option. This bag is
designed to withstand, without leakage, an internal pressure which produces a pressure differential of not
less than 95kPa. The patented VonSeal® liquid tight bag has passed the tests as outlined in 173.196(f) of
the DOT’s Title 49 CFR and as outlined in Packing Instructions 602 and 650 of the 2001-02 ICAO Technical
Instructions for the Safe Transport of Dangerous Goods by Air.
2. Available sizes
Size (I.D.: mm) | Size (I.D.: inch) | Qty per carton | |
Small | 150mm x 240mm | 6" x 9.5" | 400 bags |
Medium | 250mm x 300mm | 9.75" x 11.75" | 200 bags |
Large | 300mm x 400mm | 11.75" x 15.75" | 200 bags |
X-Large | 350mm x 450mm | 13.75" x 17.75" | 100 bags |
2. These pressure bags are made with a custom film structure that features a strong adhesive closure and
continuous seal, which makes it ideal for critical liquid and substance containment. The permanent adhesive
closure withstands a temperature range of -40⁰C up to +55⁰C (-40⁰F up to +130⁰F).
3. Take the guesswork out of packaging, protecting and shipping four inner containers of your hazmat
materials in one box with AI 650’s 4GV Packaging Kits. These UN-certified, Variation Two shippers are
suitable for shipping hazardous liquids or solids in Packing Groups I, II and III by any mode of transportation.
They can accommodate your own glass or plastic bottles which must pass hydrostatic pressure tests to
meet ISTA Procedure 1A when shipping by air. These kits include everything you need to protect your
containers’ internal contents, such as absorbent pouches, fiberboard insert, fiberboard pads, ties,
pressure-sensitive tape and a 4GV corrugated outer box. Available in two sizes, you can ship either
four 8-oz. or four 1L containers. Save yourself time and avoid packaging errors and compliance issues
when shipping four inner containers of hazardous materials by using one of these all-inclusive 4GV packaging kits.
4. It is suitable for transport packaging of pipes, bottles, containers or some samples with potential infectious
sources to the laboratory. This series of products received 95KPa pressure and leakage test in the
temperature range of -40 ° C to +50 ° C;
5.Specimen transport bags are liquid tight and tamper evident. The patented adhesive closure and
continuous seal meet or exceed standards of all major air carriers and DOT. Polyethylene construction
and adhesive closure provides added security during handling by personnel.
6.How to Close The Shipping Bag Properly
Specimen shipping bags in this carton are designed to perform at high internal pressure, should an airliner
lose its cabin pressure. So, in order for the bag to be effective and perform to its design capabilities, the bag
must be closed properly after insertion of the specimen
